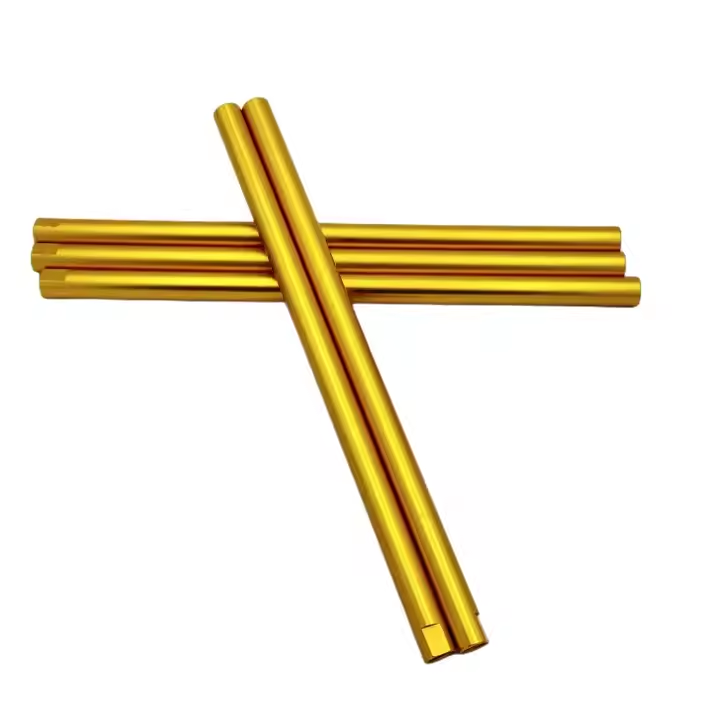

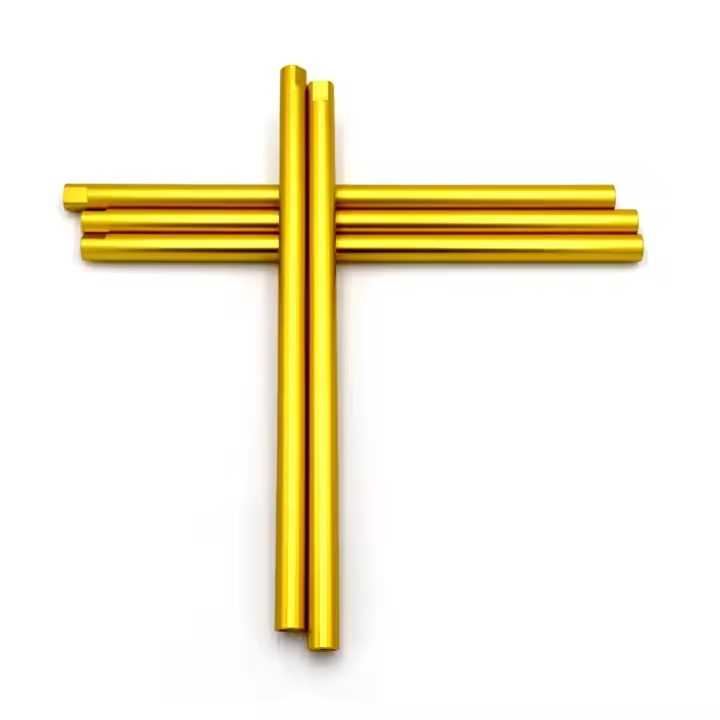

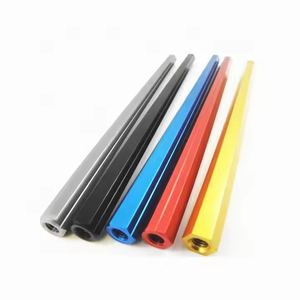

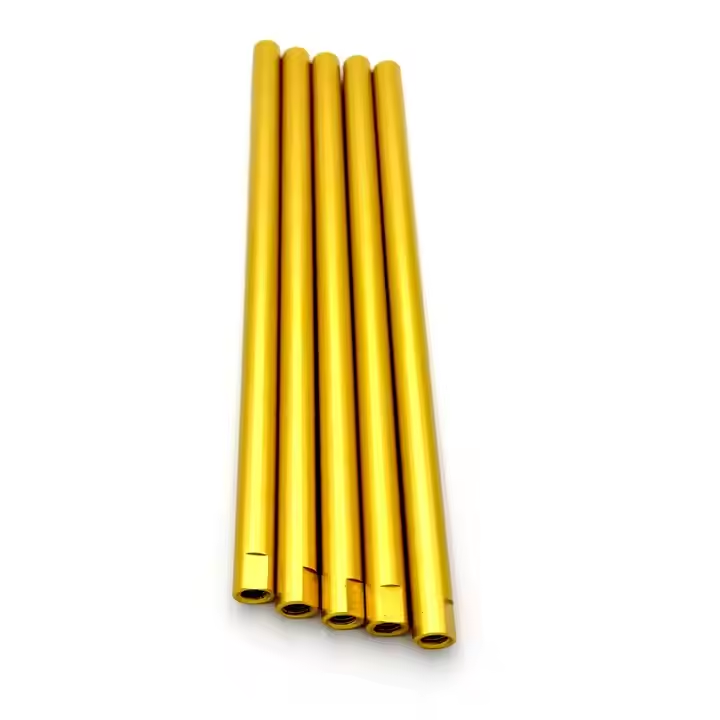

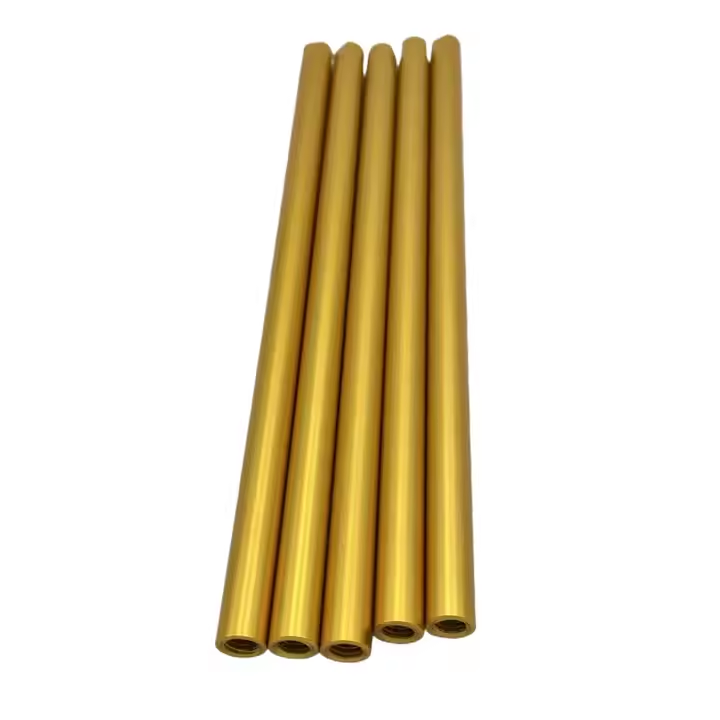

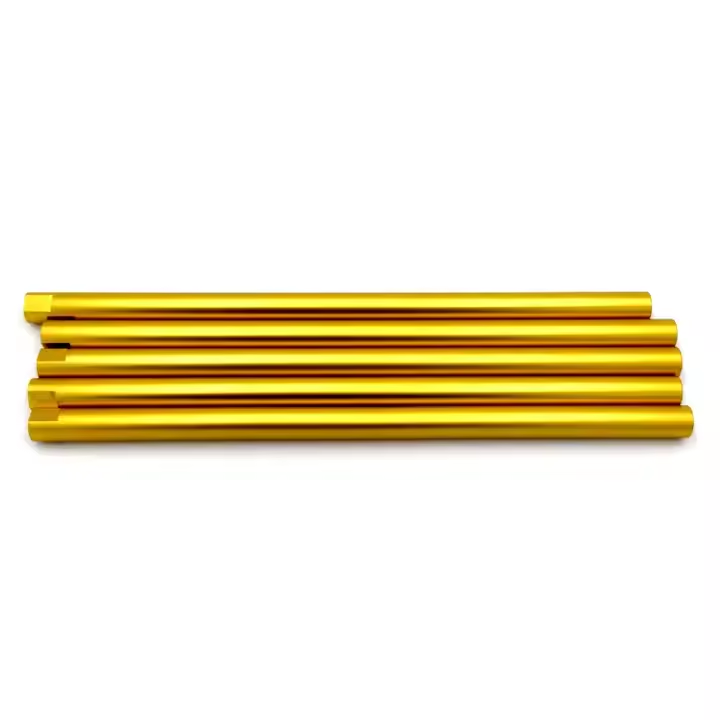

Round Tie Rod: Precision Steering for Go-Kart Mastery
The Round Tie Rod is a key steering component designed to connect the steering shaft to the spindles in a go-kart, ensuring accurate wheel alignment and smooth handling across various conditions. Crafted from high-strength materials like steel or aluminum, this cylindrical rod features a round cross-section for enhanced durability and ease of adjustment, making it a top choice for racers, mechanics, and DIY enthusiasts. Available in lengths from 6” to 25” and thread sizes such as 3/8-24 or M10, it fits a range of kart chassis from brands like Manco, Tony Kart, and CRG. Whether you’re racing on a technical track or cruising a recreational course, the Round Tie Rod delivers reliability, strength, and precision for superior steering control.
What Is a Round Tie Rod?
A Round Tie Rod is a cylindrical bar or tube that links the pitman arm on the steering shaft to the spindle arms, transferring steering input to the front wheels. Typically made from steel for robustness or aluminum for weight savings, it features threaded ends—often with left-hand and right-hand threads—for adjustable rod ends (e.g., heim joints). Its round design offers uniform strength and simplifies manufacturing, as noted by GoKartSupply and KartFab, ensuring consistent performance.
Why Use a Round Tie Rod?
Round Tie Rods provide precise steering alignment and durability, preventing wheel wobble and ensuring safety during high-speed turns or rough terrain. Their adjustability allows racers to tweak toe and Ackerman angles for track-specific handling, a benefit highlighted by Point Karting and BMI Karts, while recreational users gain a reliable, low-maintenance steering solution. The round shape enhances strength distribution, making it ideal for demanding applications.
Designed for Strength and Versatility
Our Round Tie Rods are engineered to fit standard go-kart steering systems, with options in zinc-plated steel, anodized aluminum, or chrome finishes. Supplied with rod ends and jam nuts, they support chassis from OTK, QRC, and Yerf-Dog, ensuring compatibility with engines like Predator 212cc or Rotax Max, and offering a sturdy, adaptable link for enhanced steering performance.
Key Features of the Round Tie Rod
The Round Tie Rod combines robust construction, adjustability, and practical design, making it an essential steering component for go-karts. Here’s what sets it apart.
Durable Steel or Aluminum Construction
Made from Grade 8 steel or 6061 aluminum, these tie rods deliver exceptional strength: steel rods (e.g., GoPowerSports’ 3/8-24 kit) offer tensile strength up to 150,000 PSI for heavy-duty use, while aluminum versions (e.g., Point Karting’s black anodized rods) weigh 2-4 ounces, reducing kart weight, with corrosion-resistant finishes per BMI Karts’ specifications.
Adjustable Threaded Ends with Heim Joints
Featuring 3/8-24 or M10 threads—often with left-hand and right-hand threading (e.g., KartPartsDepot’s 10mm heim kit)—the rod allows precise toe adjustments via heim joints or ball joints. This flexibility, as detailed by GoKartSupply, ensures optimal wheel alignment (e.g., 1/8” toe-in per KartFab), tailoring handling to specific tracks or conditions.
Round Cross-Section for Uniform Strength
The cylindrical design provides consistent strength across the rod’s length, resisting bending under lateral forces better than flat or square alternatives. This uniform load distribution, noted by GoKartGuide, enhances durability and simplifies machining, making it a reliable choice for high-stress steering applications.
Corrosion-Resistant Coatings
Available with zinc plating, chrome finish, or black anodizing, these coatings protect against rust and wear from moisture, salt, or track debris. The finishes, as per e-rigging.com, extend lifespan beyond uncoated metals, with stainless steel options available for extreme conditions, ensuring long-term performance in outdoor karting.
Applications of the Round Tie Rod
The Round Tie Rod’s durability and versatility make it suitable for a variety of karting scenarios, from competitive racing to rugged recreational use.
Competitive Kart Racing
In sprint, oval, or endurance racing, the round tie rod ensures precise steering on chassis like OTK or Tony Kart under high-speed conditions. Supporting engines like Rotax Max or IAME X30, it enables fine-tuning of toe and Ackerman for track-specific handling, a tuning advantage highlighted by GoKartGuide and Point Karting, boosting control and consistency.
Recreational and Club Karting
For club racers or casual drivers with Predator 212cc or Honda GX200 engines, the tie rod delivers reliable steering for recreational rides or club events (e.g., Manco or Yerf-Dog chassis). Its sturdy construction ensures stable alignment, enhancing safety with minimal maintenance, as recommended by GoPowerSports’ parts catalog.
Custom Builds and Junior Karts
DIY builders and parents upgrading junior karts rely on the round tie rod for custom or kid-friendly setups. Adjustable lengths (e.g., 10” to 25” per BMI Karts) and lightweight aluminum suit bespoke frames or smaller spindles, ensuring young drivers maintain control, per KartFab’s DIY plans and junior karting advice.
Off-Road and Rough Terrain
In off-road or dusty environments, the tie rod’s steel construction or corrosion-resistant finishes withstand impacts and debris, maintaining steering integrity on rough trails. It supports karts like American Sportworks models, ensuring dependable wheel tracking, as noted by Comet Kart Sales’ rugged components.
Technical Specifications and Installation Guide
To ensure optimal performance, understanding the Round Tie Rod’s specifications and proper installation is key. Here’s a detailed breakdown.
Size and Compatibility
Our round tie rods range from 6” to 25” in length, with thread sizes of 3/8-24 or M10 (e.g., KartPartsDepot’s 10mm kit), fitting chassis from Manco, CRG, and Tony Kart. They pair with 3/8” or 10mm heim joints (e.g., GoKartSupply’s FK rod ends) and support steering systems for engines from 150cc to 300cc, compatible with 5” or 6” front wheels.
Material Strength and Durability
Steel tie rods offer tensile strength up to 150,000 PSI, lasting 800-1,200 hours under heavy use, while aluminum (6061) provides 45,000 PSI and 500-700 hours, with anodized finishes extending wet-condition life to over 1,000 hours, per e-rigging.com’s data. Both resist bending and corrosion, ensuring consistent reliability.
Step-by-Step Installation
-
Preparation: Measure spindle-to-pitman arm distance (e.g., 10”). Gather the tie rod, heim joints, jam nuts, and tools (e.g., 9/16” wrench, thread locker).
-
Assembly: Thread heim joints onto the rod ends (left-hand and right-hand), adjusting to match the measured length. Secure with jam nuts, hand-tightening initially.
-
Mounting: Attach one heim joint to the pitman arm and the other to the spindle arm using 3/8” or M10 bolts, tightening to 20-25 ft-lbs. Adjust toe (e.g., 1/8” toe-in per KartFab) by rotating the rod, then lock jam nuts to 15-20 ft-lbs.
-
Final Check: Turn the steering wheel to confirm smooth movement and no binding. Test at low speed to verify alignment and responsiveness, tweaking if needed.
Maintenance Tips
Inspect tie rods for wear (e.g., bent rods, worn threads) after off-road or high-impact runs, cleaning with a soft brush and mild solvent. Lubricate heim joints sparingly and re-tighten jam nuts after 50 hours. Replace if cracked or misaligned, typically after 700-1,200 hours depending on material and use.
